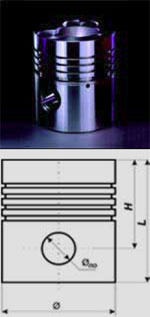

Applied in:
Engines: D-240, D-240L, D-243, D-243L, D-241L, D242, D-242L, D-65
Tractors: MTZ-80, MTZ -80L, MTZ -82, MTZ -82L, МТЗ-80.1, MTZ -82.1, MTZ -82N, MTZ -82R, UMZ-6AKL

Dimensions, mm:
Ø 110
H 79
L 125
Øpo38

Dimensional group:
Ø=110 (-0.010/-0.012) M (small)
Ø=110 (-0.08/-0.010) S (medium)
Ø=110 (-0.06/-0.08) B (large)

Weight, kg: 1,60

Additional information:
The piston can be produced in two variants: 4-grooved and 5-grooved – additional 5th groove for oil ring.

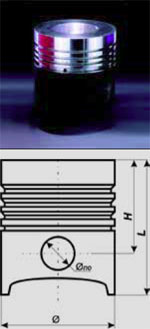

Applied in:
Engines: D-245, D-243, D-260
Tractors: MTZ-80, MTZ-100-102

Dimensions, mm:
Ø 110
H 79
L 125
Øpo38

Dimensional group:
Ø=110 (-0.09/-0.11) M (small)
Ø=110 (-0.07/-0.09) S (medium)
Ø=110 (-0.05/-0.07) B (large)

Weight, kg:1,67

Additional information:
This piston has ni-resist insert for for upper compression ring. The piston is graphitized.

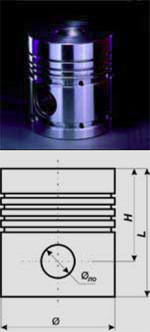

Applied in:
Engines: SMD-60, SMD-62, SMD-62-?, SMD-63, SMD-64, SMD-65, SMD-72.
Tractors: T-150, T-150K.
Combine: "KOLOS", KSKU-6.
Grain harvesting machines: KS-6, KSK-100, KSK-4

Dimensions, mm:
Ø 130
H 83
L 155
Øpo45

Dimensional group:
Ø=129,744-129-764 M (small)
Ø=129,764-129,784 B (large)

Weight, kg: 2,34

Additional information:
The piston is graphitized.

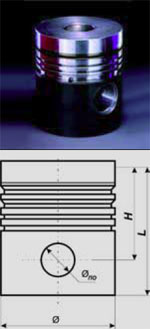

Applied in:
Engines: KAMAZ-740
Trucks: KAMAZ-5320-4320, Ural-5557, ZIL-133GYa etc.

Dimensions, mm:
Ø 120
H 75
L 123
Øpo45

Weight, kg: 2,04

Additional information:
This piston has ni-resist insert for for upper compression ring, although it’s possible to manufacture it without ni-resist insert. The piston is graphitized. The combustion chamber is carried out in two variants – with dissector and open.

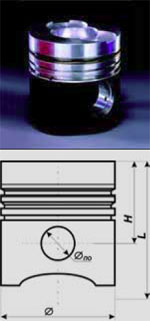

Applied in:
Engines: D-144, D-21.
Tractors: T-40M, T-40AM, T-40ANM, T-28x4M, T-25, T-16

Dimensions, mm:
Ø 105
H 77
L 120
Øpo35

Dimensional group:
Ø=105 (-0.014/-0.16) M (small)
Ø=105 (-0.012/-0.014) S (medium)
Ø=105 (-0.010/-0.12) B (large)

Weight, kg: 1,35

Additional information:
The piston can be produced in two variants: 4-grooved and 5-grooved – additional 5th groove for oil ring.
