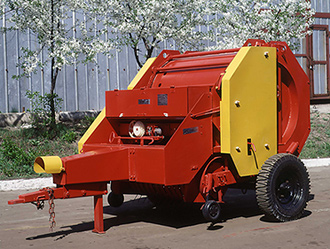

Main functions of baler PPR-110 are baling hay of natural and sown grasses, straw and flax, pressing them into cylinder rolls
and strapping with a band. The baler can be mounted as semi-trailer to the tractors of draught class 0,9 and 1,4 such as:
T-40, UMZ-6, MTZ-80/82, MTZ-100/102.
Main technical characteristics:
Capacity under line density
no less than 10 t/hour
Productivity on hay depending
up to 6 t/hour
Working width
1,25 m
Working speed
6-9 km/hour
Width of the rut
1,9 m
Power speed of power take-off shaft
540 rot/minute
Roll dimensions:
Diameter
110 cm
Width
120 cm
Roll weight:
Hay:
120-200 kg
Straw:
80-130 kg
Moisture of pressing:
Hay:
120-200 kg/m3
Straw:
80 kg/m3
Power consumption:
up to 30 KW
Weight:
1700 kg
Overall dimensions in working position with MTZ tractor:
Length:
7,2 m
Height:
in accordance with tractor
Width:
2,1-2,2 m
in storage position:
Length:
3,5-3,6 m
Height:
2,0-2,1 m
Width:
2,1-2,2 m
Banding material:
Technical twine (all-Union State Standard 17308-88) breaking load 980 H (100 kg/sec)
Reels of twine dimensions:
Diameter:
0,25 m
Height:
0,24 m
Twine rate (for 1 ton molding compound):
0,2-0,5 kg/t
It is recommended to tie round rolls of straw with fine pitch, and to tie round rolls of hay with big pitch, thus the minimal charge of a twine is achieved.
